swancolorHDカスタム基板セット / swancolorHD custom PCB Set
- 基板セット支払いから発送までの日数:3日以内残り1点あんしんBOOTHパックで配送予定物販商品(自宅から発送)¥ 6,000
- 基板+部品セット支払いから発送までの日数:3日以内残り1点あんしんBOOTHパックで配送予定物販商品(自宅から発送)¥ 8,500
- 基板+部品+実装セット(動作確認含む)支払いから発送までの日数:3日以内在庫なしあんしんBOOTHパックで配送予定物販商品(自宅から発送)¥ 10,500

HDMIケーブルで接続することでワンダースワンカラーをテレビやモニターに表示できるswancoloHDカスタム基板のセットです。 プレイステーション/プレイステーション2コントローラーで操作可能です。 電源以外はワンダースワンカラー基板へのハンダ付け作業不要で組み立てられます。 (電源もシェルにバッテリー接点を取り付けることでハンダ付け不要になります) モノクロワンダースワン、スワンクリスタルはご利用できません。 動作に必要なTang nano 9kおよびArduino nanoはご自身で用意頂く必要があります。 本セットにはシェルは付属しません。 シェルは、商品説明末尾にある「Custom Shell STL Data」のリンクより、STLデータを取得いただき、JLC3DP等の3Dプリントサービスで製作することが可能です。 「基板セット」、「基板+部品セット」を選択した場合、メイン基板の動作確認までは実施できません。 ポゴピン基板はテスト環境で動作確認いたします。 メイン基板は外部にて実装依頼をしたものになりますが、稀に映像が映らないことや、MOSFETの不良で勝手に操作される不具合が発生する可能性があることをご承知おきください。 (万が一を考慮し、すべてのセットにはMOSFET2個を予備としてお付けします) ご自身で不具合対応が行える方以外は、「基板+部品+実装セット」を選択することを推奨いたします。 なお、「部品セット」を含むバリエーションを選択した場合、部品の在庫状況によって発送までの日数が通常より多くなる可能性があります。 上記をお読みの上、以下の注意事項に同意いただける方のみご購入ください。 - 自作ハードウェアであることをご理解いただける方 - ワンダースワンカラー基板をご用意いただける方 - 本ページ下部リンク先にあるCustom ProjectのWikiを見ながら、ご自身で構築ができる方 - 日本国外のお客様は「転送コム」等の海外転送サービスのご利用に同意いただける方 --- This is a swancoloHD custom PCB Set that allows you to display Wonderswan Color on a TV or monitor by connecting it with an HDMI cable. Can be operated with PlayStation/PlayStation2 controller. It can be assembled without the need for soldering to the WonderSwan color board except for the power supply. (The power supply also eliminates the need for soldering by attaching the battery contacts to the shell.) Monochrome WonderSwan and SwanCrystal cannot be used. You must prepare the Tang nano 9k and Arduino nano required for operation by yourself. This set does not include a shell. The shell can be produced using a 3D printing service such as JLC3DP by obtaining the STL data from the "Custom Shell STL Data" link at the end of the product description. If you select "基板セット" or "基板+部品セット", it is not possible to check the operation of the main pcb. We will check the operation of the pogo pin pcb in a test environment. Although the main pcb will be mounted on an external request, please be aware that in rare cases, the image may not be displayed or a faulty MOSFET may cause the product to be manipulated without permission. (In consideration of any emergency, all sets come with 2 spare MOSFETs) Unless you are able to troubleshoot the problem yourself, we recommend selecting the "基板+部品+実装セット". Please note that if you select a variation that includes a "parts set", shipping may take longer than usual depending on the availability of parts. Please read the above and only purchase if you agree to the following precautions. - Those who understand that this is self-made hardware - Those who can prepare the WonderSwan Color board - Those who can build it themselves by referring to the Custom Project Wiki linked at the bottom of this page. - Customers outside Japan must agree to use overseas forwarding services such as "Tenso.com". Original Project: https://github.com/zwenergy/swancolorHD Custom Project: https://github.com/SourceK78/swancolorHDsh Custom Shell STL Data: https://github.com/SourceK78/swancolorHD/tree/main/PCB_CSUTOM/stl
基板セット / PCB Set

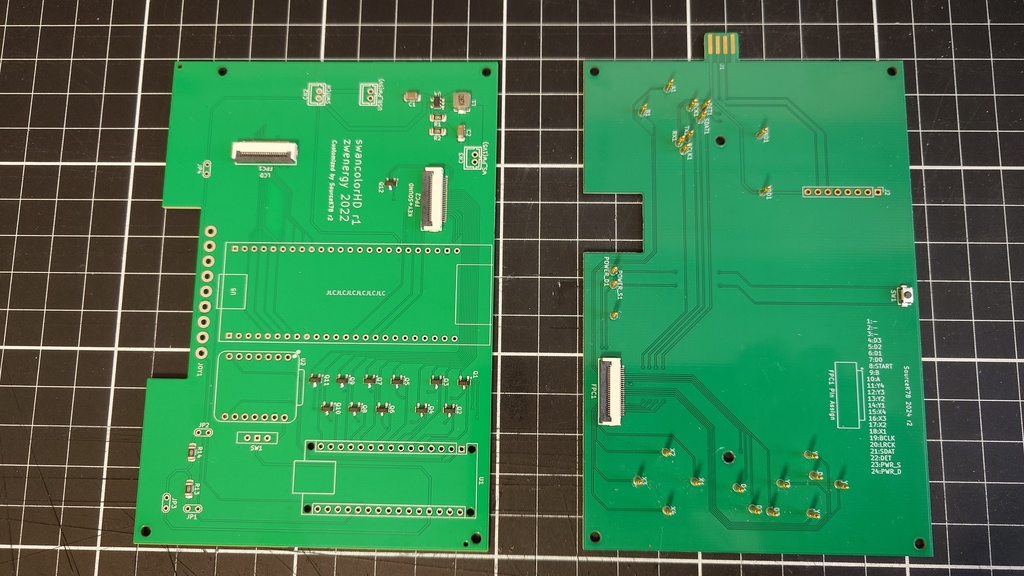

メイン基板とポゴピン基板のセットになります。 表面実装部品は実装済みの状態となります。 This set includes only the main pcb and pogo pin pcb. Surface mount components are already mounted.
部品セット / Parts Set
部品セットには、下記が含まれます。 The parts set includes: PCB Parts: - JOY1: PS/PS2 controller connector 90° female - CN1-CN3: JST PH 2.0 connector(3pcs) & wire(2pcs) - JP1-JP4: pin header 1x08 2.54mm pitch & jumper cap(4pcs) - U1: header socket 1x15 (2 pcs) - U5: header socket 1x24 (2 pcs) Other Parts: - 24pin 0.5mm pitch Forward Direction(Type-A) FFC 15cm (2 pcs) - USB Type-C power supply connector female - self-locking switch 3-6V 8mm dia - battery contacts (TAKACHI:IT-4SP) (2 pcs)
実装セット / mount set
こちらでスルーホール部品の実装と動作確認まで実施いたします。 We will also implement through-hole component mounting and operation confirmation.
